Berxel Photonics Co., Ltd.

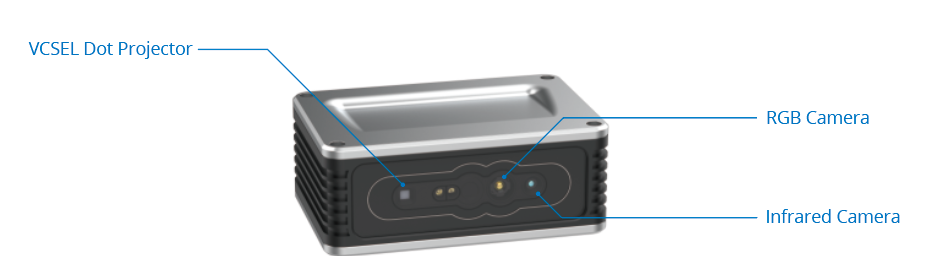

mHawk 100E

・940 nm high performance VCSEL

・Support depth and RGB synchronous output

・Ethernet communication. IP67 housing with aviation connector

Applications :

・Service, logistics and industrial robots, AIoT and beyond

Ethernet communication. IP67 housing with aviation connector

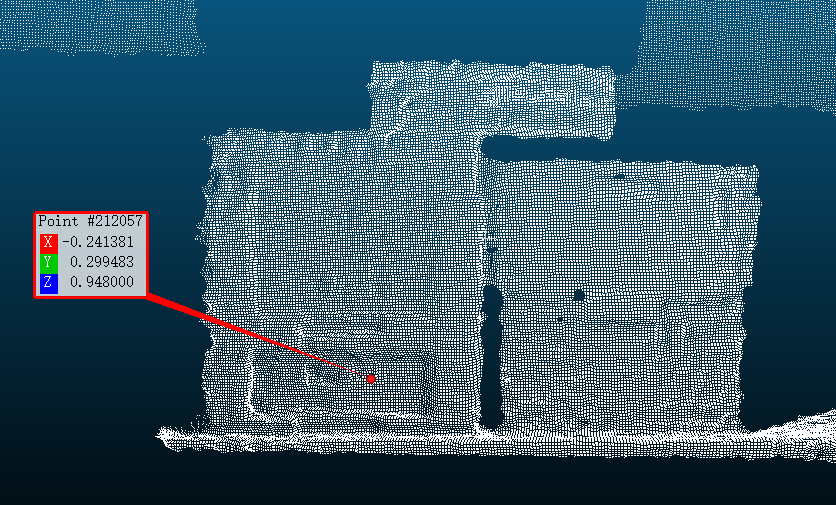

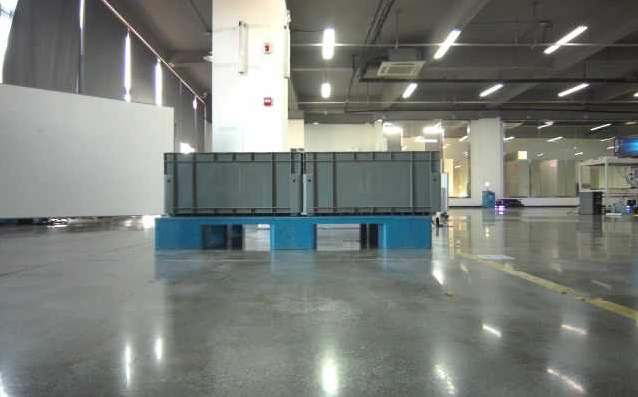

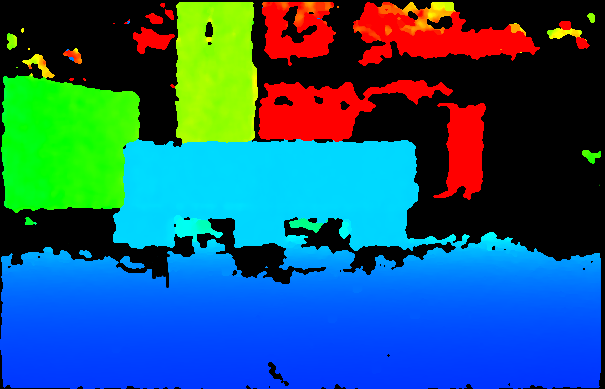

See the camera in action

Technical Parameter

Datasheet

Specification

Size

90 mm x 60 mm x 37 mm

Support operating system

Windows / Android / Linux

Weight

200g

Data protocol

TCP / UDP

Parameter

Resolution / Frame

1280 x 800 @ 7 fps / 640 x 400 @ 25 fps

Relative accuracy

1 mm @ 60 cm

Depth / Frame

1280 x 800 @ 7 fps / 640 x 400 @ 25 fps

FOV

72°(±3°) x 50.5°(±3°)

Features

Range

0.3 m ~ 8.0 m

Eye safety

Support

Laser safety

Class 1

Environment

Indoor / Outdoor

Operation reliability

- 10 ~ 60°C

Average power

< 3 W

Interface

Ethernet
