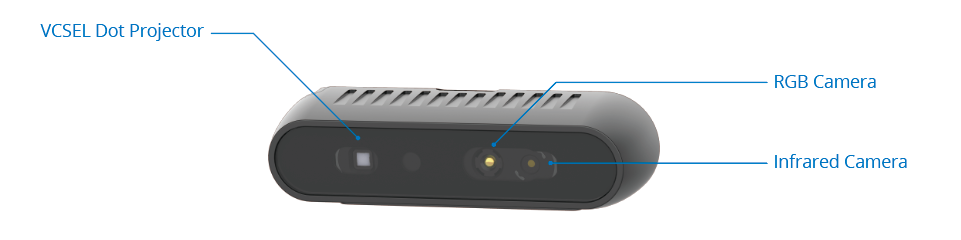

mHawk 100R

・940 nm high performance VCSEL

・Support depth and RGB synchronous output

・Type C interface for enhanced compatibility

Applications :

・Service, logistics and industrial robots, AIoT and beyond
Enhanced compatibility with Type-C interface

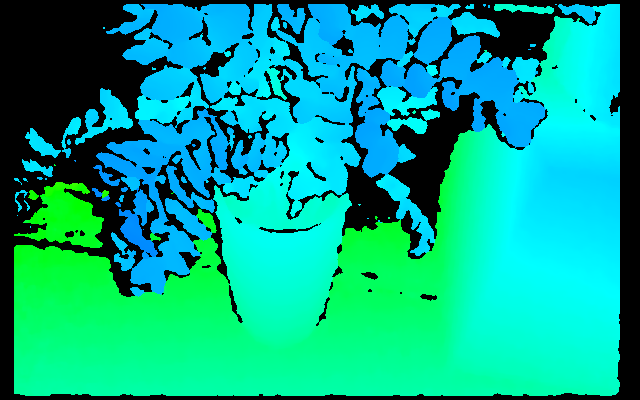

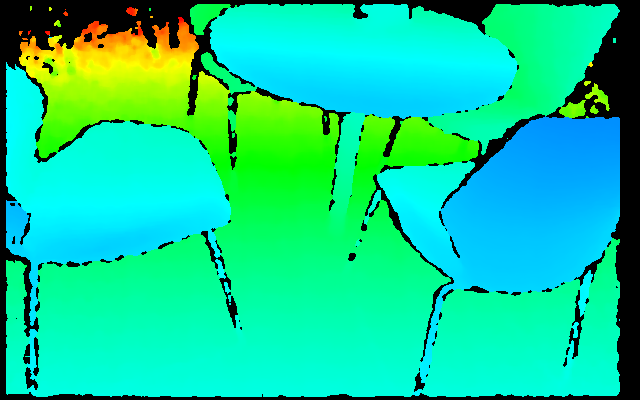

See the camera in action
Technical Parameter
Datasheet
Specification
Size
90 mm x 25 mm x 25 mm
Support operating system
Windows / Android / Linux
Weight
72 g
Data protocol
UVC
Parameter
Resolution / Frame
1280 x 800 @ 7 fps / 640 x 400 @ 30 fps
Relative accuracy
1 mm @ 60 cm
Depth / Frame
1280 x 800 @ 7 fps / 640 x 400 @ 30 fps
FOV
72°(±3°) x 50.5°(±3°)
Features
Range
0.3 m ~ 8.0 m
Eye safety
Support
Laser safety
Class 1
Environment
Indoor / Outdoor
Operation reliability
- 10 ~ 60°C
Average power
< 2.2 W
Interface
Type C USB 2.0
