850 nm multimode transmission
Data rates up to 53 Gbps
6-inch process, high volume and uniformity
GR468 reliability compliant
IEEE 802.3 cm performance compliant
| 53 Gbps PAM4 VCSEL | |
| Working Temperature (Module Case Temperature) |
(0 – 70 °C) |
| Modulation Bandwidth | 18 GHz |
| RINOMA | < -136 dB/Hz |
| Data Transmission Distance | 100 m |
| Estimated Wear-out Life | > 10 years |

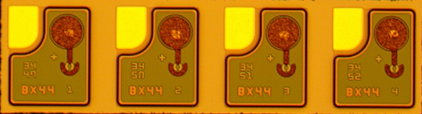

| Die Dimensions for 1X4 array | 980 um (Width) * 265 um (Length) * 150 um (Thickness) |
Notes:CTR: 0 °C to +70 °C (32 °F to +158 °F)
ITR: -40 °C to +85 °C (-40 °F to +185 °F)
ESR: 25 Gbps ESR means 300 m data transmission
